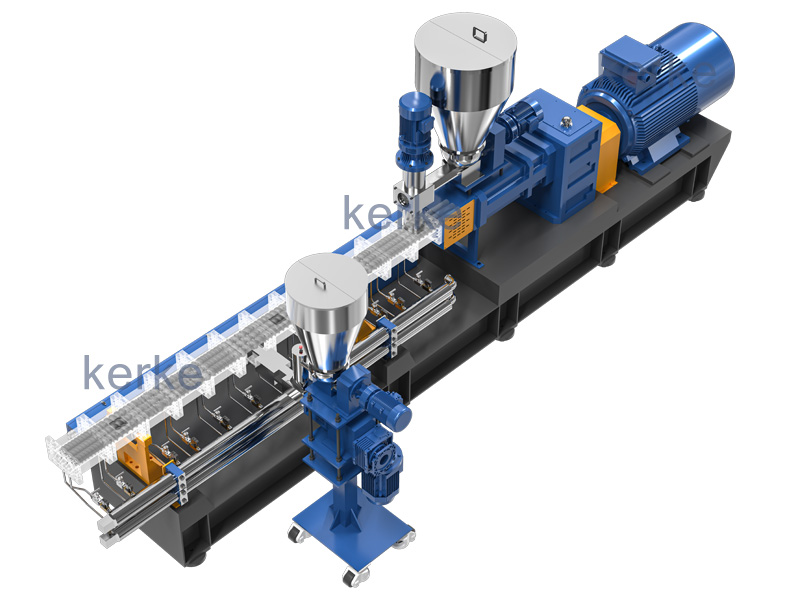

Triple (3 screws) Extruder


3 Screws extruder is a new technology that has many advantages. The triple screw extruder is mainly used for special applications with good dispersion and higher output

  • Filler Masterbatch (High Caco3)
  • Black Masterbatch
Request A Quote Now


Why 3 screws extruder?

3 screw extruder has some advantages for special applications, parallel twin screw extruder was a long-time technology, but for some special applications the twin screw extruder can not process so well, we have 3 screws.

Advantages of 3 screws extruder

  1. Better dispersion
  2. Higher output

Main technical parameter


Model

Screw Diamter
【mm】

D/d
【mm】

Maximum Speed
【rpm】

Motor
【Kw】

Torque
【N.m】

Output
【Kg/h】

KTET-36B

35.6

1.51

600

55/75

7.8~9

100~300

KTET-36D

35.6

1.51

600

75/90

7.8~9

200~500

KTET-50B

50.5

1.55

600

90/132

7.8~9

300~800

KTET-50D

50.5

1.55

600

132/160

7.8~9

400~1200

KTET-65B

62.4

1.54

600

132/160

9~11.8

500~1500

KTET-65D

62.4

1.54

600

200/250

9~11.8

600~1800

KTET-75B

71

1.51

600

200/315

9~11.8

800~2000

KTET-75D

71

1.51

600

315/500

9~11.8

1000~3000
